F770/F740 Punch & Die Set - 12 Pack
CPDS0012
Regular price $350.00Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 12 F770 Round Punches, 12 F740 Round Dies, Half Pint of Punch-Easy®, and Toolbox. Dies are supplied with notch.

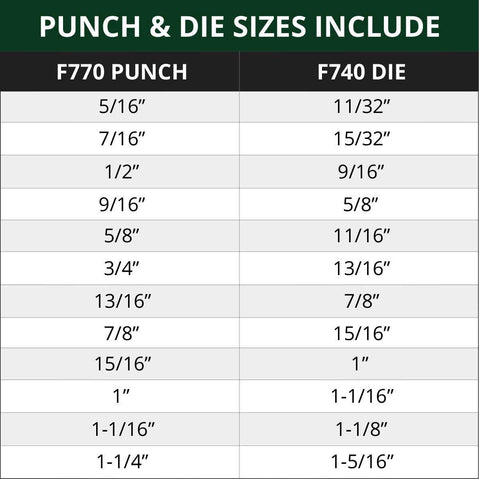

Punch & Die Sizes Include:
| F770 Punch | 5/16", 7/16", 1/2", 9/16", 5/8", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16", 1-1/4" |
| F740 Die | 11/32", 15/32", 9/16", 5/8", 11/16", 13/16", 7/8", 15/16", 1", 1-1/16", 1-1/8", 1-5/16" |
F770 Punch Dimensions:
Head Diameter: 1.500"
Body Diameter: 1.250"
Overall Length: 3.125"

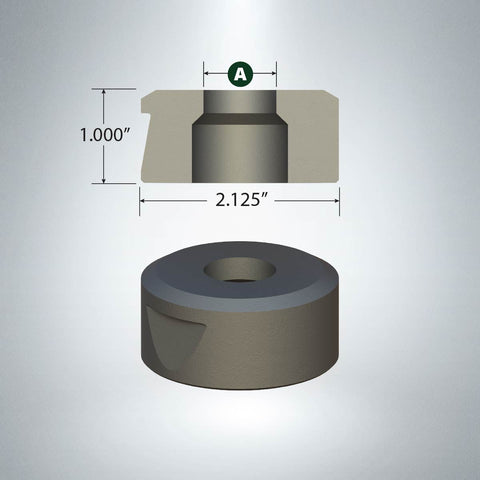

F740 Die Dimensions:
Outside Diameter: 2.125"
Height: 1.000"
Punch & Die Clearance:

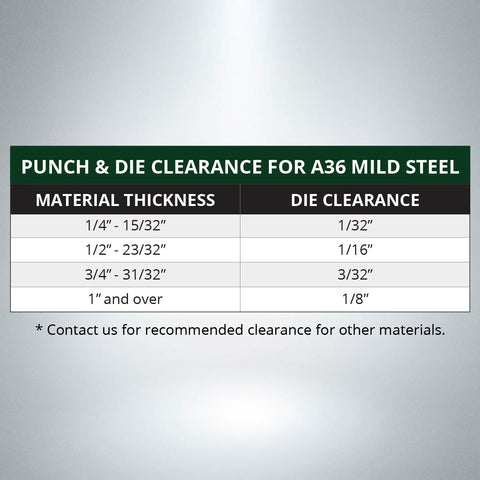

Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:
Material thickness should not exceed punch size.
Cross Reference:
| F770 Punch | AP-164, CST-64, GFM-124, WAW-7701 |
| F740 Die | AP-347, CST-47, GFM-132, WAW-7402 |
