The F55 round die is manufactured from high-quality tool steel, built for punching holes in mild steel, stainless steel, aluminum & more. Compatible with various ironworker machines such as Piranha™, Edwards™ and more. Commonly paired with F16 and F20 round punches.
Ideal for punching holes in flat bar, angle iron, channel, I-beams, and sheet metal for fabrication, maintenance, and manufacturing shops.
Use the chart in the image carousel to determine recommended die clearance. The punch and die should NOT be the same size.
Frequently Asked Questions
01
How do I verify this is the die I need?
Check the stamp or engraving on your die for a part number or other identifying marks then compare it with the cross reference above.

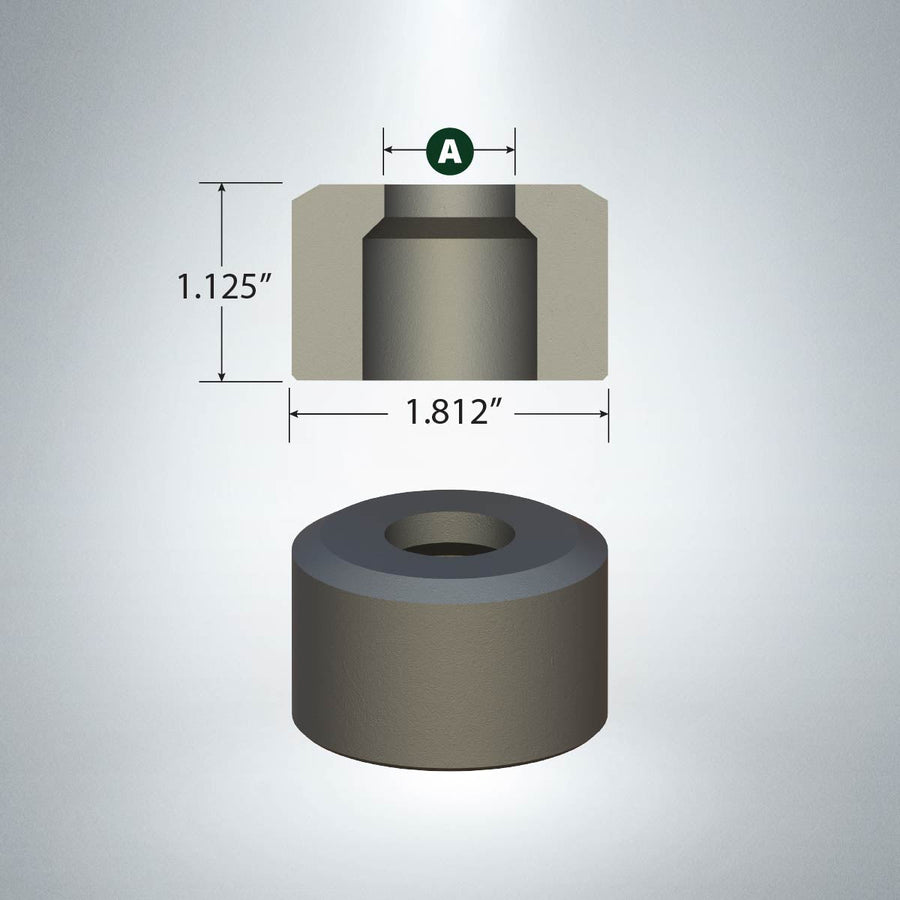

Measure the outer diameter and height of your die then verify those dimensions with the dimensions listed above or in the image.
Verify the machine make and model. Shop dies for your specific machine by using the sidebar filters on our store.
If you're still unsure, contact our customer support team and we will help identify the die.
02
What is the largest F55 round hole size I can use?
The largest F55 round die you can use is 1-3/8" diameter.
03
How do I find the corresponding punch for a F55 round die?
F55 dies are most commonly paired with F16 and F20 round punches.
Check the stamp or engraving on your punch for a part number or other identifying marks.
Measure the overall length, body diameter, and head diameter of your punch then verify those dimensions with punch dimensions listed in our online store or catalog.
If you're still unsure, contact our customer support team and we will help identify the correct punch.
04
How do I determine the correct punch and die clearance?
The proper die clearance depends on the type and thickness of the material you're punching. Softer, thinner materials require less clearance, while harder, thicker materials require more. Use the clearance chart above to determine whether to add 1/32", 1/16", 3/32", or 1/8" to your punch diameter when selecting a die.
Fabricamos punzones, matrices, hojas de cizalla y accesorios para ferreteros y diversas punzonadoras. Contamos con el apoyo para atender a clientes fuera de los Estados Unidos y enviar nuestros productos a nivel internacional. Nuestro equipo también está en "WhatsApp", lo que nos permite comunicarnos directamente con cualquier persona, en cualquier parte del mundo. Haga clic aquí para obtener más información o ponerse en contacto con representate de servicio al cliente.
STOP
Are you using these punches and dies together? If yes, the bottom die size needs to be larger than the top punch.
To determine how much larger the bottom die should be, please refer to the chart below.
Proudly Made in the USA
