F20 Oblong Punch with 4mm x 2.5mm Single Keyway
F20 Oblong Punch with 4mm x 2.5mm Single Keyway
F20 Oblong Punch with 4mm x 2.5mm Single Keyway
F20 Oblong Punch with 4mm x 2.5mm Single Keyway

F20 Oblong Punch with 4mm x 2.5mm Single Keyway

0020P0501871000I

Regular price $65.95 Save $-65.95
-8 in stock

Punches are supplied with a 4mm wide x 2.5mm deep single keyway. Use 4mm x 4mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F59 and F62 Oblong Dies.

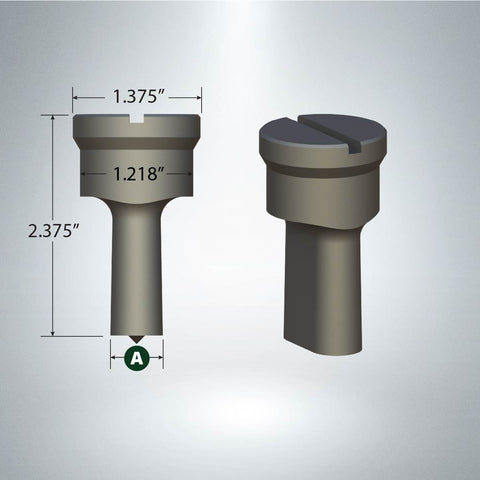

Dimensions:
Head Diameter: 1.375"
Body Diameter: 1.218"
Overall Length: 2.375"

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed the smallest punch size.

Cross Reference:

F20 Punch AP-121, CST-221, GFM-40, PIR-EA, SCOT-40

made in the usaProudly Made in the USA
