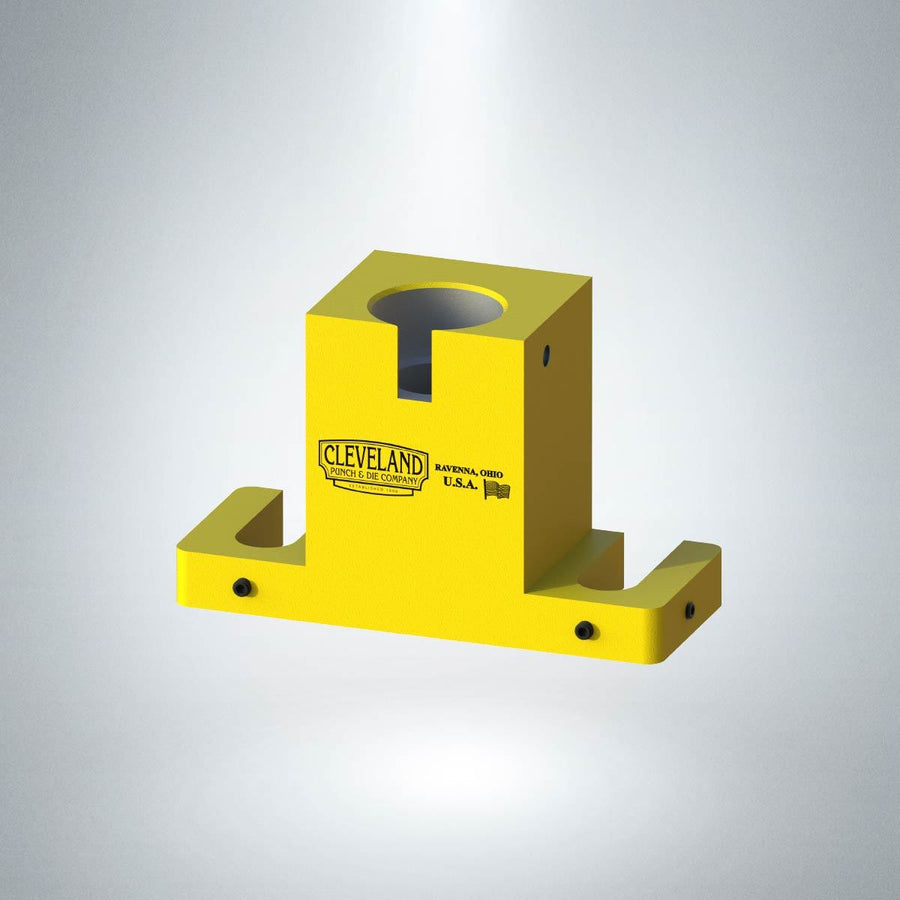

Piranha™ Die Block P50/P65 (02304001)

Piranha™ Die Block P50/P65 (02304001)

$398.00 / each P/N: P20H0003
In StockLarge Inventory
Same Day ShippingOrder by 5PM EST
100% Made in USAProprietary tool steel
  • Pedestal design allows for punching angle iron & channel
  • Direct replacement for Piranha™ OEM part number 02304001
  • Compatible with Piranha™ P50, P65, PII-35 & SEPP-35 ironworkers
  • Designed to securely hold F55 style dies
Commonly Paired With:
1/8
Piranha™ Standard Stripper Assembly P50/P65 (02304011)
Piranha™ Standard Stripper Assembly P50/P65 (02304011) $845.00 USD
F55 Round Die for Ironworkers
F55 Round Die for Ironworkers $17.85 USD
F55 Oblong Die for Ironworkers
F55 Oblong Die for Ironworkers $69.50 USD
F55 Square Die for Ironworkers
F55 Square Die for Ironworkers $69.50 USD
F55 Hexagon Die for Ironworkers
F55 Hexagon Die for Ironworkers $69.50 USD
F55 Round Offset Die for Ironworkers
F55 Round Offset Die for Ironworkers $49.50 USD
F55 Oblong Offset Die for Ironworkers
F55 Oblong Offset Die for Ironworkers $89.00 USD
F55 Corner Radius Die for Ironworkers
F55 Corner Radius Die for Ironworkers $157.50 USD

Description

The Piranha™ Die Block is a replacement ironworker die block for OEM part number 02304001, used in the punching station of compatible Piranha™ ironworker models P50, P65, PII-35, and SEPP-35. Its pedestal design allows for easier punching of angle iron and channel. The die block is machined from solid steel for superior strength and long-lasting performance.

This ironworker die block is designed to securely hold F55 style dies for P50, P65, PII-35, and SEPP-35 ironworkers.

Compatibility

Piranha™ P50 (Serial Numbers 1-13,000)
Piranha™ P65 (All Serial Numbers)
Piranha™ PII-35 (All Serial Numbers)
Piranha™ SEPP-35 (All Serial Numbers)

Dimensions

Length: 7.125”
Width: 2.765”
Height: 4.500”
Die Pocket: 1.812”

Part Numbers & Cross References

Cleveland Punch & Die: P20H0003
Piranha™ OEM: 02304001
Cleveland Steel Tool™: C21537

Upgrade Available

If your machine does not already have the complete punching setup, consider upgrading to the Piranha™ Standard Punch Attachment, which includes the Stripper Assembly, Die Block, and Punch Nut Wrench.

Catalog
Catalog Catalog Catalog

Frequently Asked Questions

01

What is this die block used for?

This die block is designed to securely hold F55 dies during the punching operation, ensuring proper alignment and consistent, accurate hole punching.

02

What style of die does this die block hold?

This die block holds F55 style dies.

03

Which Piranha™ ironworker models does this die block fit?

The die block fits on Piranha™ P50 (serial numbers 1-13,000), P65, PII-35, and SEPP-35 ironworkers.

04

Is this the same as Piranha™ part number 02304001?

Yes. This die block directly replaces Piranha™ OEM part number 02304001.

05

How do I confirm this die block fits my machine?

Verify your machine model, serial number and OEM part number in your manual. If you’re unsure, contact or chat with our customer support team for assistance.
