F16 Square Punch with V-Groove
F16 Square Punch with V-Groove
F16 Square Punch with V-Groove
F16 Square Punch with V-Groove

F16 Square Punch with V-Groove

0016P030218A

Regular price $57.00 Save $-57.00
0 in stock

Punches are supplied with a single v-groove. Use 1/8" Round x 1" Long Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 Square Dies.

*For carriage bolt and square tube applications we recommend using a square punch 1/32" larger than the size of carriage bolt or square tube.

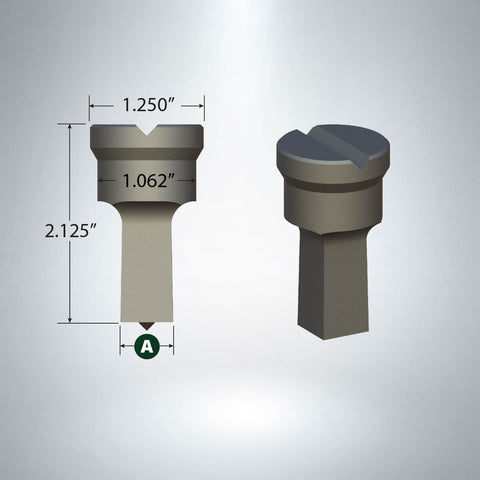

Dimensions:
Head Diameter: 1.250"
Body Diameter: 1.062"
Overall Length: 2.125"

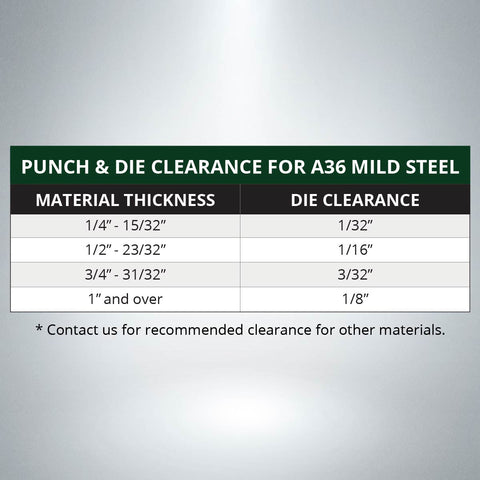

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed punch size.

Cross Reference:

F16 Punch AP-119, CST-219, GFM-37, PIR-DH

made in the usaProudly Made in the USA
