F16 Corner Radius Punch with 4mm Cross Keyway
F16 Corner Radius Punch with 4mm Cross Keyway
F16 Corner Radius Punch with 4mm Cross Keyway
F16 Corner Radius Punch with 4mm Cross Keyway
F16 Corner Radius Punch with 4mm Cross Keyway
F16 Corner Radius Punch with 4mm Cross Keyway
F16 Corner Radius Punch with 4mm Cross Keyway
F16 Corner Radius Punch with 4mm Cross Keyway

F16 Corner Radius Punch with 4mm Cross Keyway

0016P170387D

$157.50 Save $-157.50
In StockLarge Inventory
Same Day ShippingOrder by 5PM EST
100% Made in USAProprietary tool steel
-2 in stock

Punches are supplied with a 4mm wide x 4mm deep cross keyway. Use 4mm x 6mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Corner Radius Dies.

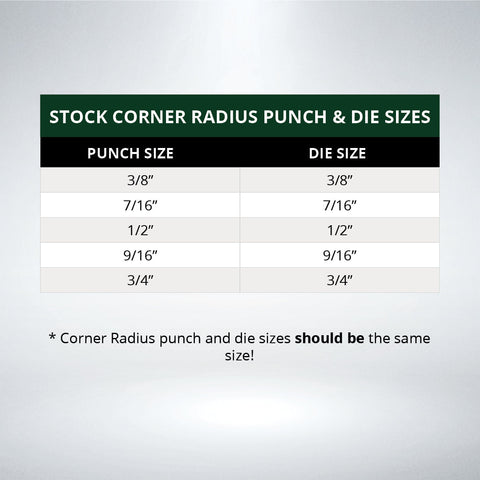

*Punch and Die should be the same size.

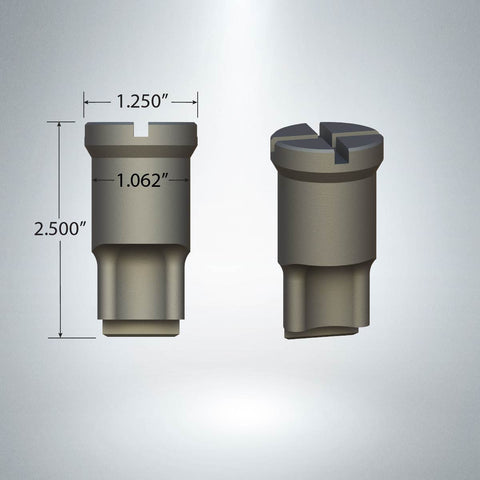

Dimensions:
Head Diameter: 1.250"
Body Diameter: 1.062"
Overall Length: 2.500"

Punch & Die Clearance:
Corner Radius Tooling has a standard .024" clearance.

Note:
Material thickness should NOT exceed 1/4".

Cross Reference:

F16 Punch AP-119, CST-219, GFM-37, PIR-DH
