F12 Oblong Punch - No Keyway

Name: F12 Oblong Punch - No Keyway
Brand: Cleveland Punch and Die
SKU: 0012P0503120500
Price: 51.25 USD
Availability: InStock

0012P0503120500

$51.25

[{"id":42118827474997,"title":"5\/16\" x 1\/2\"","option1":"5\/16\" x 1\/2\"","option2":null,"option3":null,"sku":"0012P0503120500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F12 Oblong Punch - No Keyway - 5\/16\" x 1\/2\"","public_title":"5\/16\" x 1\/2\"","options":["5\/16\" x 1\/2\""],"price":5125,"weight":137,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42118827507765,"title":"3\/8\" x 1\"","option1":"3\/8\" x 1\"","option2":null,"option3":null,"sku":"0012P0503751000","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F12 Oblong Punch - No Keyway - 3\/8\" x 1\"","public_title":"3\/8\" x 1\"","options":["3\/8\" x 1\""],"price":5125,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42118827540533,"title":"9\/16\" x 3\/4\"","option1":"9\/16\" x 3\/4\"","option2":null,"option3":null,"sku":"0012P0505620750","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F12 Oblong Punch - No Keyway - 9\/16\" x 3\/4\"","public_title":"9\/16\" x 3\/4\"","options":["9\/16\" x 3\/4\""],"price":5125,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42118827573301,"title":"9\/16\" x 1\"","option1":"9\/16\" x 1\"","option2":null,"option3":null,"sku":"0012P0505621000","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F12 Oblong Punch - No Keyway - 9\/16\" x 1\"","public_title":"9\/16\" x 1\"","options":["9\/16\" x 1\""],"price":5125,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42118827606069,"title":"13\/16\" x 1\"","option1":"13\/16\" x 1\"","option2":null,"option3":null,"sku":"0012P0508121000","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F12 Oblong Punch - No Keyway - 13\/16\" x 1\"","public_title":"13\/16\" x 1\"","options":["13\/16\" x 1\""],"price":5125,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55 Oblong Dies.

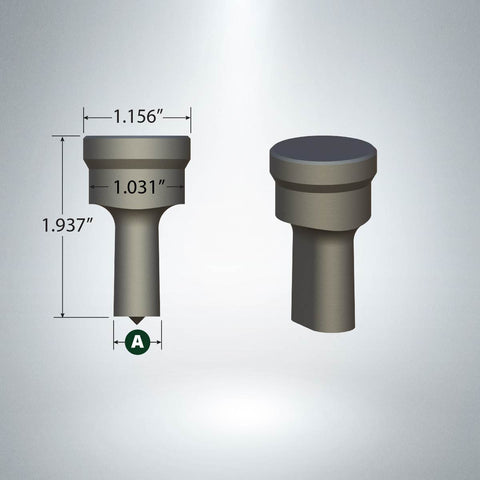

Dimensions:
Head Diameter: 1.156"
Body Diameter: 1.031"
Overall Length: 1.937"

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed punch size.

Cross Reference:

F12 Punch

AP-116, CST-216, GFM-34, PIR-DE

Proudly Made in the USA
