1" F16 Round Punch for Ironworkers

The F16 Round Punch is used for punching holes in mild steel, stainless steel, and other metals. Compatible with various ironworker machines such as Piranha™, Edwards™, and more. Commonly paired with F55 or F59 Round Dies.

Punches are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. Ideal for fabrication, maintenance, and manufacturing shops.

Punch & Die Clearance:

Use the chart in the image carousel above to determine recommended die clearance. The punch and die should NOT be the same size.

Specifications:

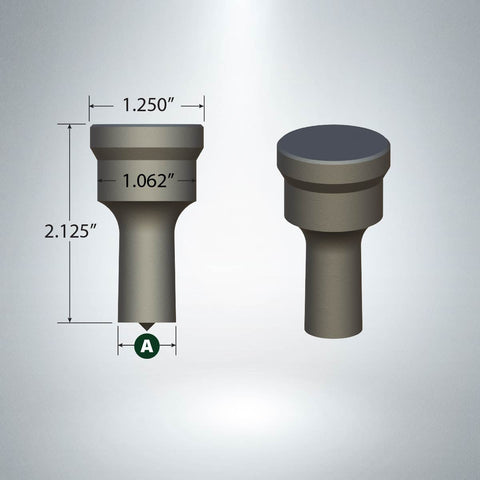

• F16 Punch: 1.250" head diameter, 1.062" body diameter, 2.125" overall length
• F16 Punch size cannot exceed 1-1/8". Contact us for any custom sizes (1/64" increments, millimeters, etc.)

Replacement For:

• American Punch™ (AP-119 punch)
• Cleveland Steel Tool™ (CST-219 punch)
• Piranha™ (PIR-DH punch)

Punch is Compatible for the Following Machines:

• Cayman™
• Edwards™
• Hawthorne™
• Megaworker™
• Nelson™
• Omes™
• Peddinghaus™
• Piranha™
• Pittsburgh™
• Polmaco™

Proudly Made in the USA
