1-1/32" CST-413 Round Die for Ironworkers
1-1/32" CST-413 Round Die for Ironworkers
1-1/32" CST-413 Round Die for Ironworkers
1-1/32" CST-413 Round Die for Ironworkers

1-1/32" CST-413 Round Die for Ironworkers

0055D041031CST

$17.00 Save $-17.00
0 in stock

The CST-413 Round Die is used with a CST-219 Round Punch to punch holes in mild steel, stainless steel, and other metals. Compatible with various ironworker brands including Piranha™, Edwards™, and more. Paired with CST-219 Round Punch.

Dies are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. Ideal for fabrication, maintenance, and manufacturing shops.

Punch & Die Clearance:

Use the chart in the image carousel above to determine recommended die clearance. The punch and die should NOT be the same size.

Specifications:

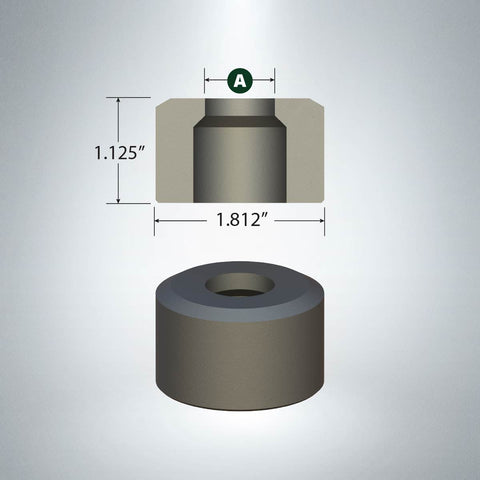

  • CST-413 Die: 1.812" outside diameter, 1.125" height
  • CST-413 Die size cannot exceed 1-3/8". Contact us for any custom sizes (1/64" increments, millimeters, etc.)

Replacement For:

  • American Punch (AP-313 die)
  • Cleveland Punch & Die (F55 die)
  • Piranha (PIR-JB die)

Die is Compatible for the Following Machines:

  • Cayman™
  • Edwards™
  • Hawthorne™
  • Megaworker™
  • Nelson™
  • Omes™
  • Peddinghaus™
  • Piranha™
  • Pittsburgh™
  • Polmaco™
made in the usaProudly Made in the USA
