F155 Round Die for Ironworkers

• Check the stamp or engraving on your die for a part number or other identifying marks then compare it with the cross reference above.

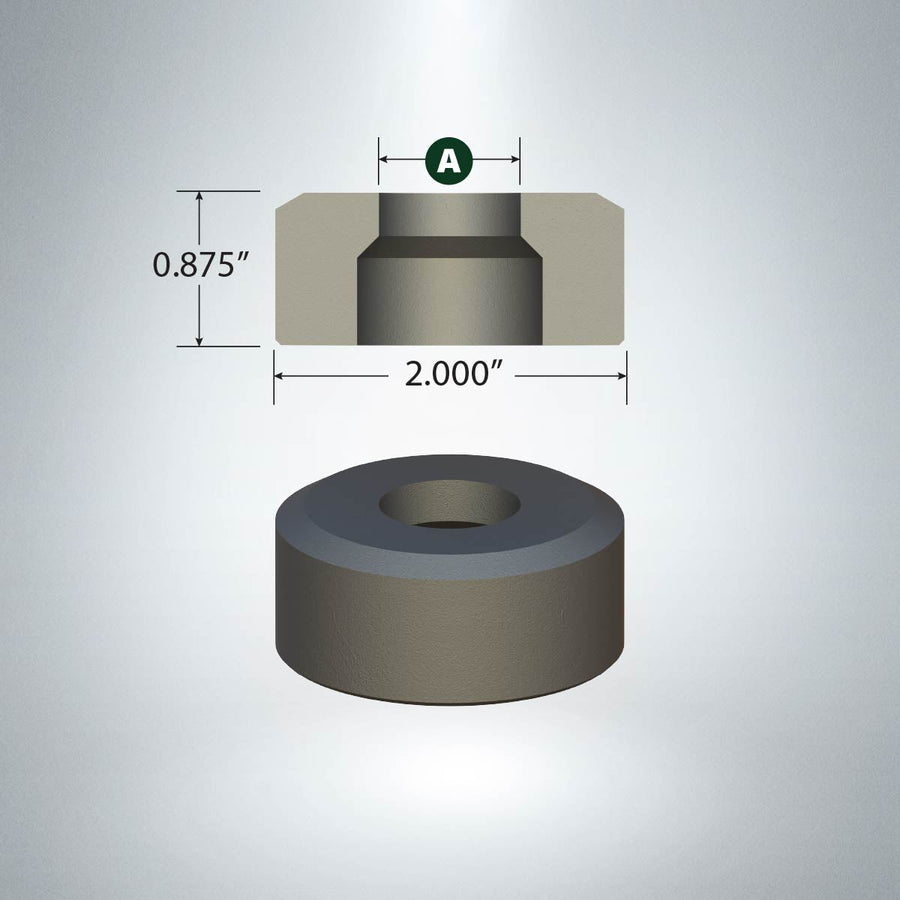

• Measure the outer diameter and height of your die then verify those dimensions with the dimensions listed above or in the image.
• Verify the machine make and model. Shop dies for your specific machine by using the sidebar filters on our store.
• If you're still unsure, contact our customer support team and we will help identify the die.

The largest F155 round die you can use is 1-5/16" diameter.

• F155 dies are most commonly paired with SR20K round punches.
• Check the stamp or engraving on your punch for a part number or other identifying marks.
• Measure the overall length, body diameter, and head diameter of your punch then verify those dimensions with punch dimensions listed in our online store or catalog.
• If you're still unsure, contact our customer support team and we will help identify the correct punch.

The proper die clearance depends on the type and thickness of the material you're punching. Softer, thinner materials require less clearance, while harder, thicker materials require more. Use the clearance chart above to determine whether to add 1/32", 1/16", 3/32", or 1/8" to your punch diameter when selecting a die.

To maximize die life:

• Apply Punch-Easy® lubricant every 5–10 punches.
• Use the correct punch and die clearance for your material.
• Make sure the punch stripper fully contacts the material before punching.
• Never punch material that is thicker than the diameter of the punch.
• Ensure the punch and die are properly aligned before punching.

Following these guidelines will help reduce wear and extend the life of both your punch and die.
