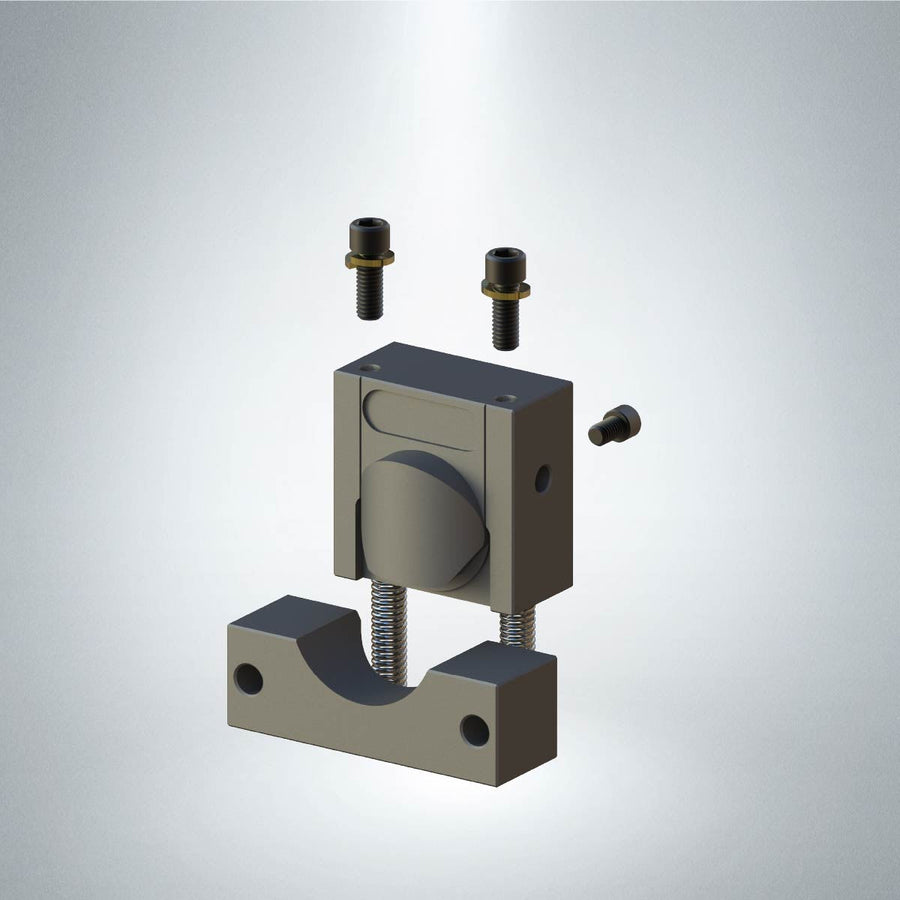

2" Sch 40-90° Pipe Notcher for Scotchman™ Ironworkers (001228)

The 2" Schedule 40 Pipe Notcher is designed to notch the end of 2" Schedule 40 pipe for fabrication and welding applications. The notch is completed in two machine cycles by rotating the pipe 180° between cycles.

Designed for use with compatible pipe notch housings on Scotchman™ ironworkers. Scotchman™ Pipe Notch Housing and Scotchman™ Pipe Notch Striker 012450 sold separately.

For 2" Schedule 40 pipe only.

Scotchman™ Ironworkers

2" Schedule 40 Pipe Dimensions:
Outside Diameter: 2.375”
Inside Diameter: 2.067”
Wall Thickness: 0.154"

Cleveland Punch & Die: CPDA0113
Scotchman™: 001228

The following repair kit is available separately for replacing components of the pipe notcher:

Pipe Notcher Repair Kit

Pipe Notcher 1/2" x 3" Die Spring

Don't see the replacement part you need? Contact our customer support team and we will help you find it.
