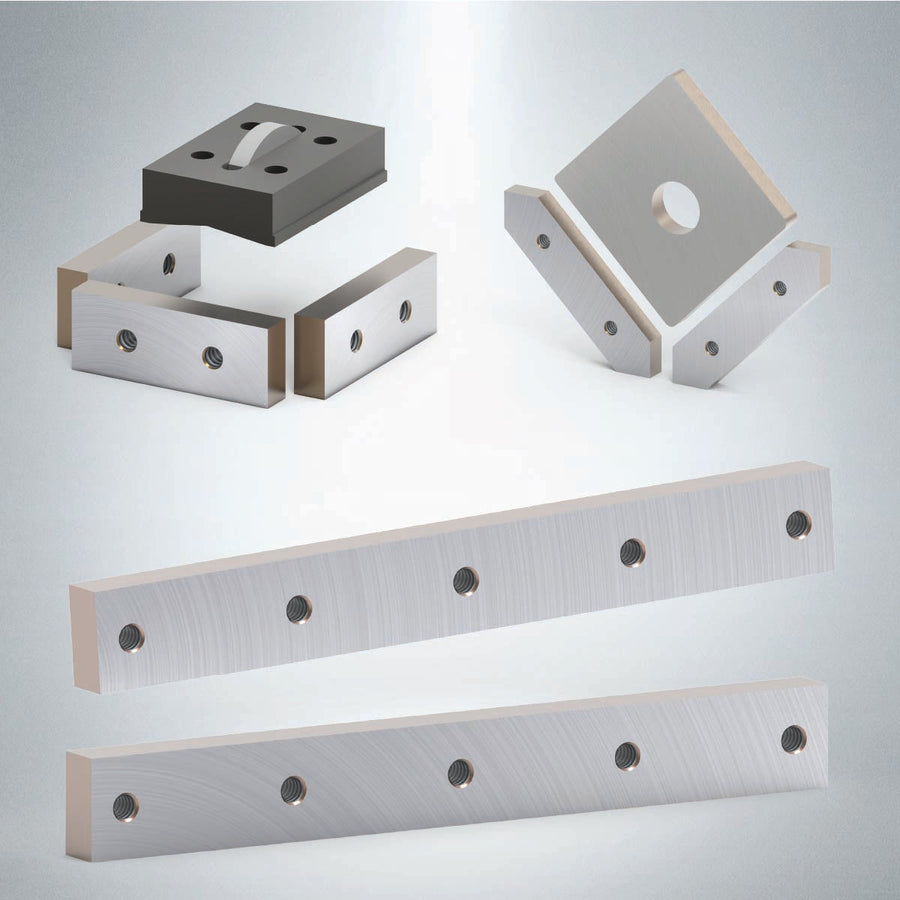

Piranha™ Shear Blade Set - Flat Bar, Angle & Notcher P50/P65

The Piranha™ Complete Shear Blade Set is a stock replacement blade set for compatible Piranha™ P50 & P65 ironworkers. This complete set includes one upper notcher blade, three lower notcher blades, two flat bar blades, one upper angle blade, and two lower angle blades to replace every shear blade in the machine.

This complete shear blade set is manufactured from proprietary tool steel for heavy-duty shearing and notching of structural steel, including flat bar, angle iron, and other common structural materials. Manufactured to deliver superior wear resistance and longer blade life than standard OEM blades.

This set includes one Piranha™ Upper Notcher Blade 0230277, three Piranha™ Lower Notcher Blades 0230276, two Piranha™ 12-1/8" Flat Bar Blade 02302501, one Piranha™ Upper Angle Blade 0230273, two Piranha™ Lower Angle Blades 0276274.

One shear blade set is required per machine for Piranha™ P50 & P65 ironworker

Piranha™ P50 (Serial Numbers 6,557-13,000)
Piranha™ P65 (All Serial Numbers)

Piranha™ Upper Notcher Blade:
Length: 4.000”, Width: 2.750”, Height: 1.000”
Piranha™ Lower Notcher Blade:
Length: 4.000”, Width: 0.625”, Height: 1.500”
Piranha™ 12-1/8" Flat Bar Blade:
Length: 12.125”, Width: 0.750”, Height: 1.500”
Piranha™ Upper Angle Blade:
Length: 5.250”, Width: 0.625”, Height: 5.250”
Piranha™ Lower Angle Blade:
Length: 6.500”, Width: 0.625”, Height: 1.500”

Cleveland Punch & Die: P20BS0001

The following blades are included in this shear blade set and are available separately:

Piranha™ Upper Notcher Blade (0230277)

Piranha™ Lower Notcher Blade (0230276)

Piranha™ 12-1/8" Flat Bar Blade (02302501)

Piranha™ Upper Angle Blade (0230273)

Piranha™ Lower Angle Blade (0276274)

Don't see the replacement part you need? Contact our customer support team and we will find the part you need.
