Piranha™ 5-3/4" Oversize Die Holder Single Operator (4431410)

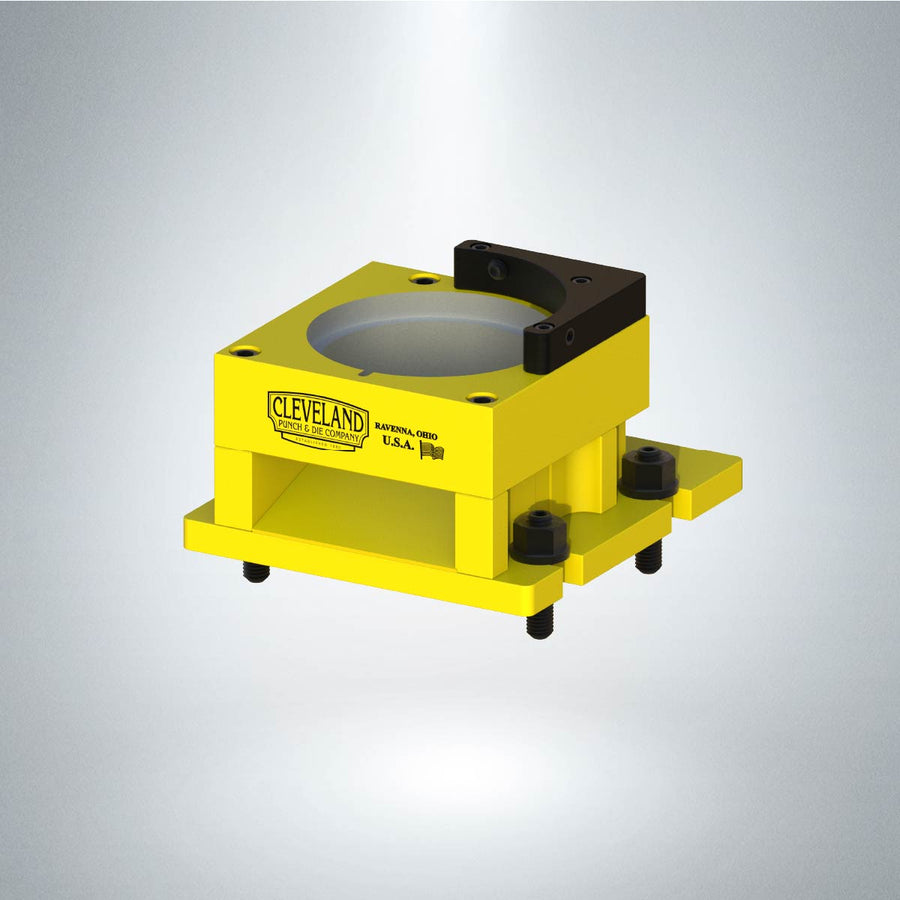

The Piranha™ 5-3/4” Oversize Die Holder is used on Piranha™ P50, P65, P70, P90, P110, P120, and P140 ironworkers when you need to punch a hole diameter larger than the machine’s standard capacity. With this oversize die holder installed, operators can punch holes up to 5" diameter, depending on material thickness and machine capacity.

This oversize die holder is designed to securely hold 5-3/4” outside diameter F2815 and F2835 style dies for P50, P65, P70, P90, P110, P120, and P140 ironworker models.

This oversize die holder matches multiple different oversize punch holders depending on the machines model number. If you’re unsure of the matching punch holder, contact or chat with our customer support team for assistance

Piranha™ P50 (Serial Numbers 1-13,000)
Piranha™ P65 (All Serial Numbers)
Piranha™ P70 (All Serial Numbers)
Piranha™ P90 (All Serial Numbers)
Piranha™ P110 (All Serial Numbers)
Piranha™ P120 (All Serial Numbers)
Piranha™ P140 (All Serial Numbers)

Length: 10.000”
Width: 9.250”
Height: 5.938”
Die Pocket: 5.750”

Cleveland Punch & Die: P20H0009
Piranha™ OEM: 4431410
