F20/F59 Round Ironworker Punch & Die Set - 12 Pack

F20/F59 Round Ironworker Punch & Die Set - 12 Pack

$375.00 / each P/N: CPDS0003
In StockLarge Inventory
Same Day ShippingOrder by 5PM EST
100% Made in USAProprietary tool steel
  • Restock inventory or supply a new machine with popular punch & die sizes

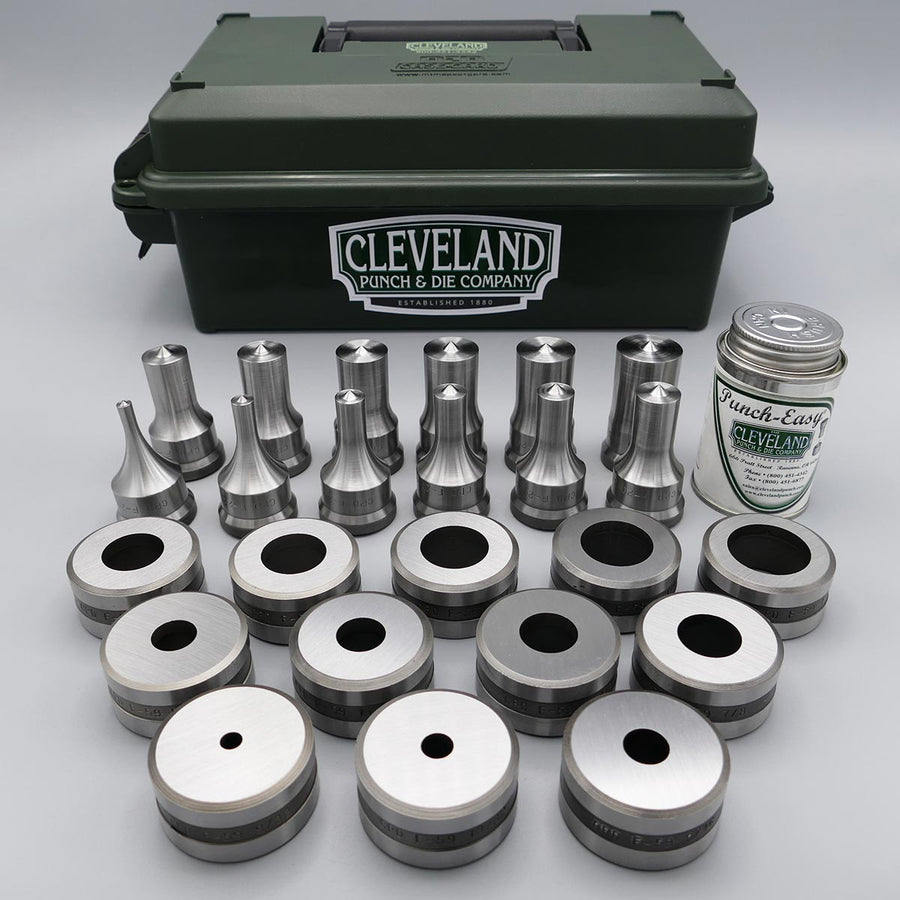

  • 12 round punches, 12 round dies, a half pint of Punch-Easy® & a large toolbox
  • Compatible with Geka™, Scotchman™ & more ironworkers

Description

Round Punch and Die Set is complete with (12) F20 Punches, (12) F59 Dies, and a half pint of Punch-Easy® lubricant; conveniently packed in a large, durable toolbox.

Punches and dies are manufactured from a high-quality tool steel, built to last for punching mild steel, stainless steel, aluminum and more. Tooling is used to punch flat bar, angle, channel, I-beam, or sheet metal. This 12-pack set ensures you have the punch and die size you need on hand for daily and future fabricating jobs.

Compatibility

Durma™
Excel™
Falcon™
Ficep™
Gairu™
Geka™
Ironcrafter™
Knuth™
Midwest™
Omera™
Omes/Promaco™
Peddinghaus™
Scotchman™
Wysong™

Dimensions

F20 Punch:
Head Diameter: 1.375"
Body Diameter: 1.218"
Overall Length: 2.375"
F59 Die:
Outside Diameter: 2.000"
Height: 1.000"

Part Numbers & Cross References

Cleveland Punch & Die: CPDS0003
Cleveland Steel Tool™: Toolpack-6G

Sizes Included

F20 Punches:
1/4", 3/8", 1/2", 9/16", 5/8", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16", 1-3/16
F59 Dies:
9/32", 13/32", 9/16", 5/8", 11/16", 13/16", 7/8", 15/16", 1", 1-1/16", 1-1/8", 1-1/4"

Clearance

Pre-determined clearances ensure optimal hole quality in mild steel. Use the chart to the left to see corresponding die size for the punch. The punch and die should NOT be the same size.

Replacement Parts

The following items are included in this punch & die set and are available separately:

F20 Round Punches
F59 Round Dies
Punch-Easy® Lubricant
Large Toolbox

Frequently Asked Questions

01

How do I verify this is the punch and die set I need?
  • Check the stamp or engraving on your punch and die for a part number or other identifying marks then compare it with the cross reference above.
  • Measure the outer diameter and height of your die and the head diameter, body diameter, and overall length of your punch, then verify those dimensions with the dimensions listed above or in the image.
  • Verify the machine make and model. Shop punches and dies for your specific machine by using the sidebar filters on our store.
  • If you're still unsure, contact our customer support team and we will help identify the die.
02

What if there isn't a punch or die size included that I need?

If you need a punch or die size that is not included in the set, purchase those sizes individually along with the punch and die set.

03

When will my order ship?

Orders placed before 5:00pm EST ship the same business day for all in-stock items.

04

Do you offer expedited shipping?

Yes, expedited shipping options are available at checkout.
