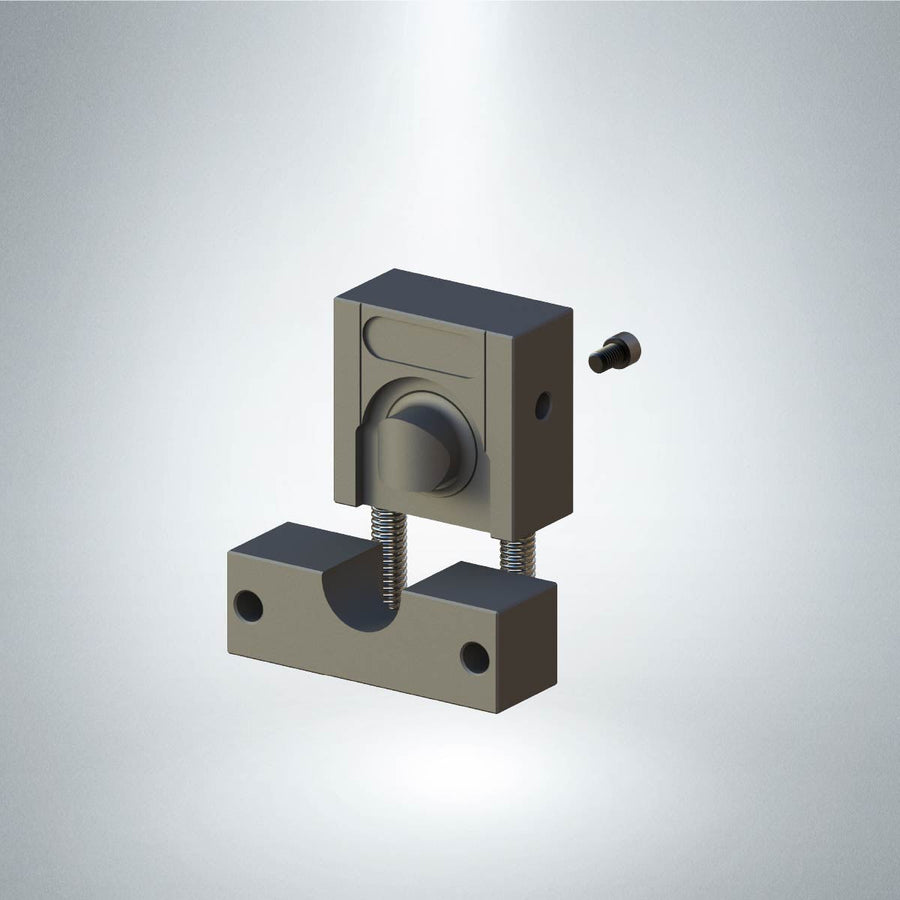

1" Schedule 40-90° Pipe Notcher

1" Schedule 40-90° Pipe Notcher

$660.00 / each P/N: CPDA0003
In StockLarge Inventory
Same Day ShippingOrder by 5PM EST
100% Made in USAProprietary tool steel
  • Notches 1" Sch. 40 Pipe at 90° in two machine cycles
  • Compatible with Piranha™ & Edwards™ ironworkers
  • For 1" Schedule 40 pipe only
Commonly Paired With:
1/3
Pipe Notcher Housing for Edwards™ Ironworkers (AC0925)
Pipe Notcher Housing for Edwards™ Ironworkers (AC0925) $430.00 USD
Pipe Notcher Housing for Piranha™ Ironworkers (4433631)
Pipe Notcher Housing for Piranha™ Ironworkers (4433631) $430.00 USD
Punch-Easy® Lubricant
Punch-Easy® Lubricant $15.50 USD

Description

The 1" Schedule 40 Pipe Notcher is designed to notch the end of 1" Schedule 40 pipe for fabrication and welding applications. The notch is completed in two machine cycles by rotating the pipe 180° between cycles.

Designed for use with compatible pipe notch housings on Piranha™ and Edwards™ ironworkers. Pipe notch housings are sold separately.

For 1" Schedule 40 pipe only.

Compatibility

Edwards™ Ironworkers
Piranha™ Ironworkers

Dimensions

1” Schedule 40 Pipe Dimensions:
Outside Diameter: 1.315”
Inside Diameter: 1.049”
Wall Thickness: 0.133”

Part Numbers & Cross References

Cleveland Punch & Die: CPDA0003
Edwards™: ED9-AC1046
Piranha™: 4433636

Replacement Parts

The following repair kit is available separately for replacing components of the pipe notcher:

Pipe Notcher Repair Kit

Pipe Notcher 1/2" x 3" Die Spring

Don't see the replacement part you need? Contact our customer support team and we will help you find it.

Frequently Asked Questions

01

What does pipe notch tooling do?

Pipe notch tooling notches the end of pipe to help create a proper fit when joining pipe for fabrication and welding.

02

Can I use this pipe notch tooling for tubing?

No. Pipe notch tooling is for pipe only.

03

What type of pipe can I use with this tooling?

This tooling is used to notch aluminum, mild steel, and stainless steel pipe.

04

What size pipe does this tooling notch?

This tooling is designed specifically for 1" Schedule 40 pipe.

05

Which ironworkers can use this pipe notch tooling?

This tooling is designed for use with compatible pipe notch housings on Piranha™ and Edwards™ ironworkers.

06

How do I confirm this tooling fits my machine?

Verify your machine model, serial number and OEM part number in your manual. If you’re unsure, contact or chat with our customer support team for assistance.

07

When will my order ship?

Orders placed before 5:00pm EST ship the same business day for all in-stock items.

08

Do you offer expedited shipping?

Yes, expedited shipping options are available at checkout.
